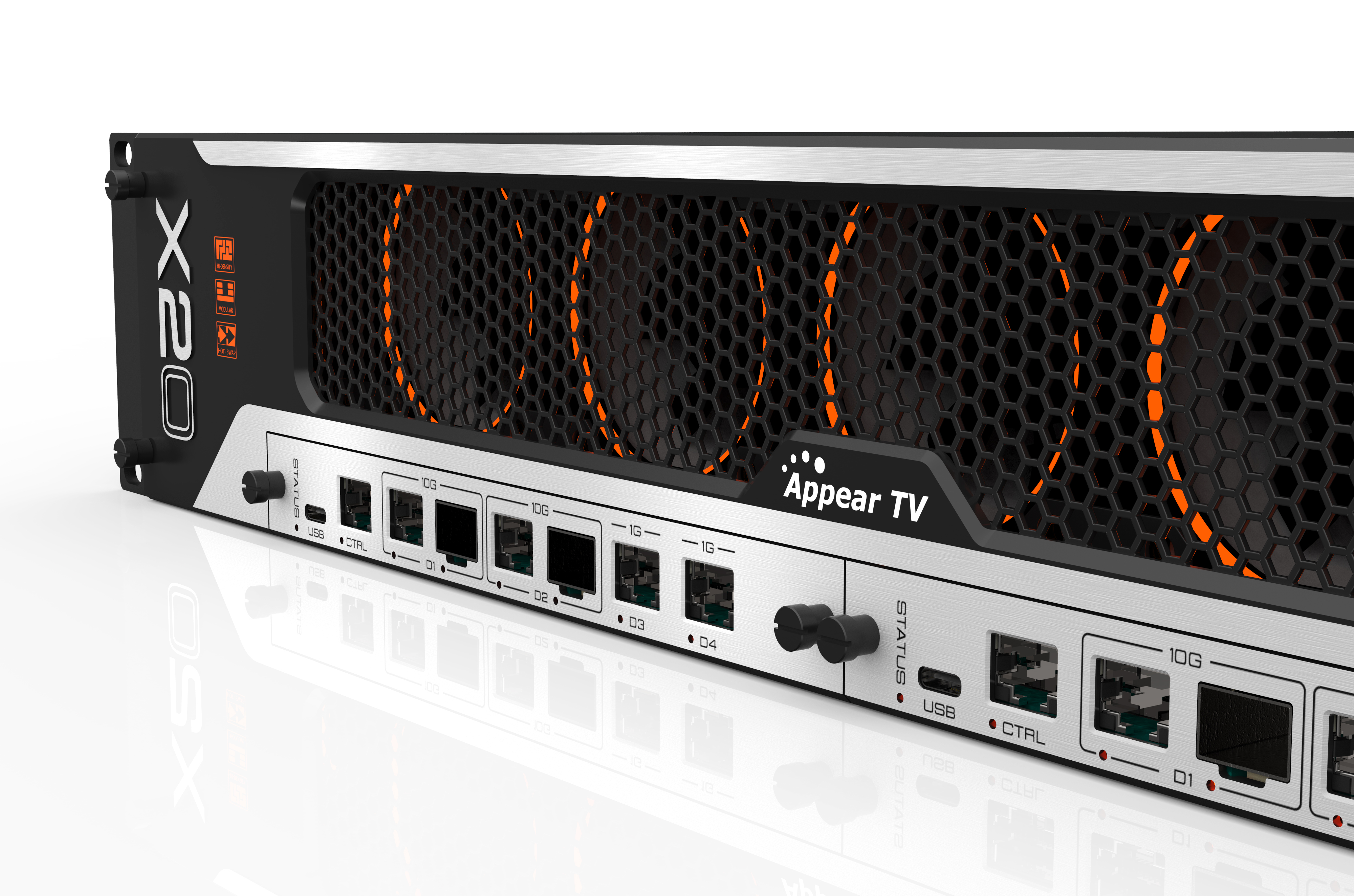

Appear TV X20 - new 10GB platform for high-speed video transmission with low delay!

Appear TV has recently released new X20 platform fro high capacity video processing. X20 is ideal for operators and broadcasters seeking solutions that go beyond 1 GB connectivity. Along with high-speed connection new X20 platform supports modern compression formats in power efficient manner.


Appear TVs X10/X20 ultra high-speed video networking solution is a quantum leap forward for operators distributing content over IP. Capable of handling virtually any processing requirement, ranging from distribution, contribution to DTH transmission, it is a purpose-built hardware appliance created for longevity, density and flexibility. The X20 features bi-directional 10G and 25G interfaces, ultra-low controllable latency and default firewall functionality in a modular chassis that can be fitted with various modules, making it a “living system” that can deliver the latest in high quality video delivery over time.


The current module portfolio supports the processing and transmission of multiple video services up to full UHD resolution. Both compressed and uncompressed formats can be handled seamlessly, allowing the latest codecs, such as HEVC, JPEG2K and TICO to be deployed in any combination with ultra-low latency, optional 4:2:2 Chroma sampling and true ‘any-to-any’ format flexibility. Additionally, the platform provides Simulcrypt scrambling and descrambling of up to 2,000 services in a single module.


New Modules for the X10/X20 Platform

  • The IP Card features dual-redundant 10Gbps IP I/O, GUI-configurable bidirectional or unidirectional data ports, seamless input switching and cloned outputs. It supports 10G uncompressed SDI over IP and up to 6Gbps MPEG transport stream processing (de-muxing and re-muxing).
  • The High-Density SDI Card offers eight 3Gbps serial digital video interfaces per module with each supporting up to one 1080p60 service, on-board SDI-to-IP and IP-to-SDI conversion according to SMPTE 2022/6 and 2022/7
  • The Simulcrypt-compliant Scrambling Card supports scrambling of up to 2,000 services at data rates of up to 6Gbps and supports DVB-CSA and AES encryption with a dedicated Simulcrypt interface towards CA servers.


Contact our sales for pricing and availability!


Read more at Appear TV portal: http://appeartv.com/news/appear-tv-accelerates-video-transmission-with-highly-reduced-delay
